Shield Radar Speed Sign

Shield Radar Speed Signs

Shield is the fastest-deploying, most rugged radar speed sign available – web-enabled for collecting data and remote management.

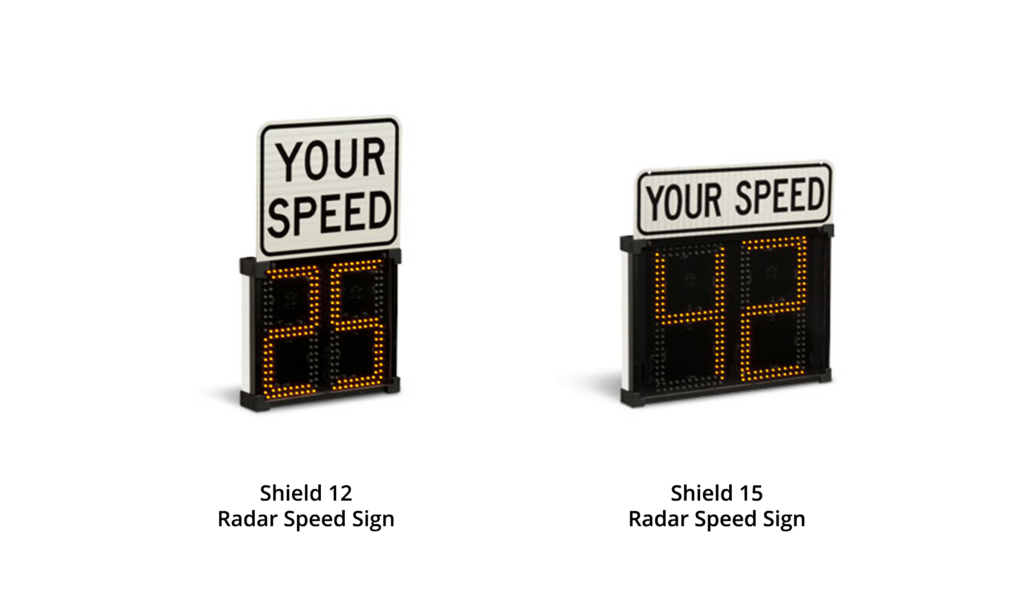

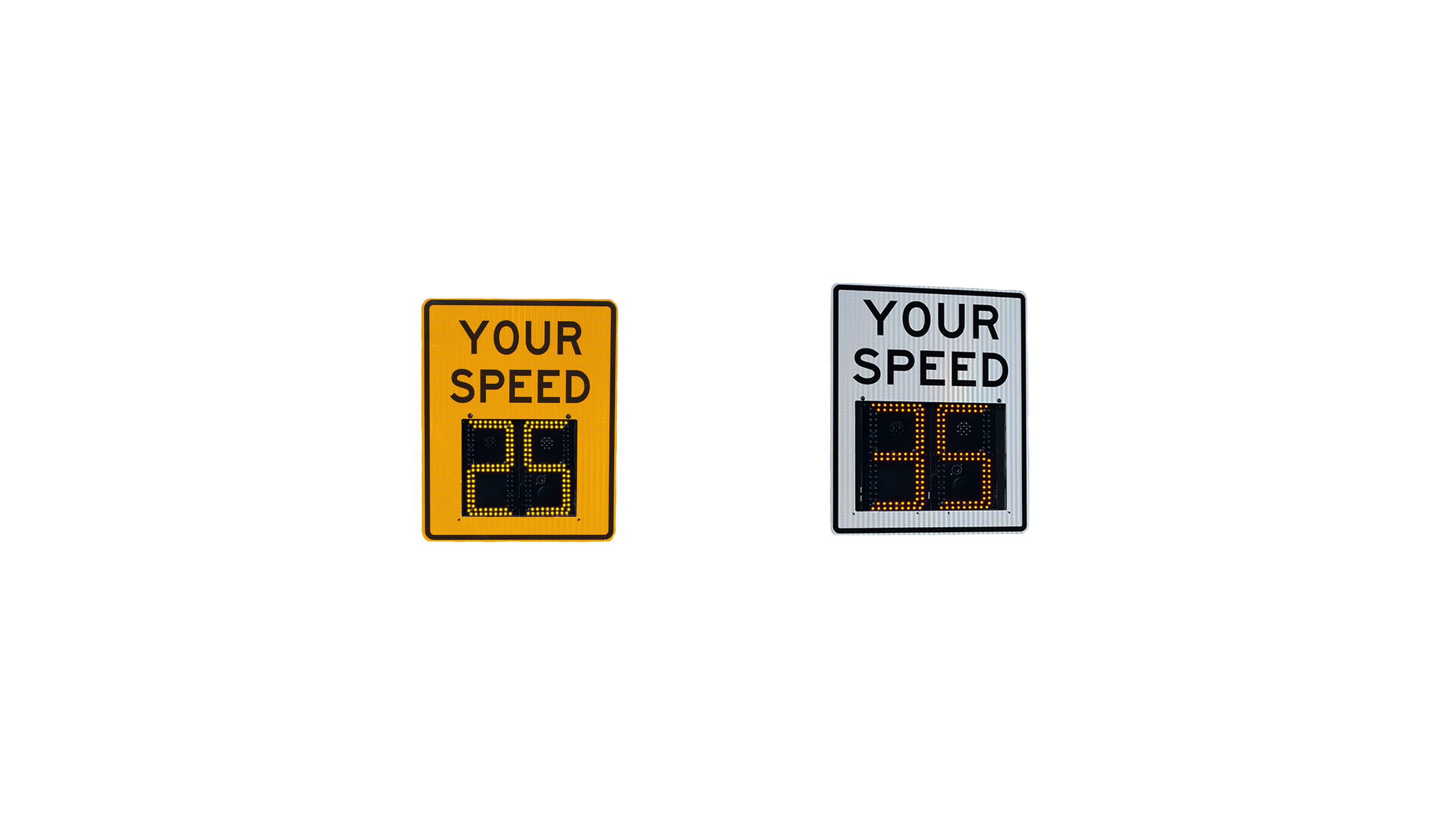

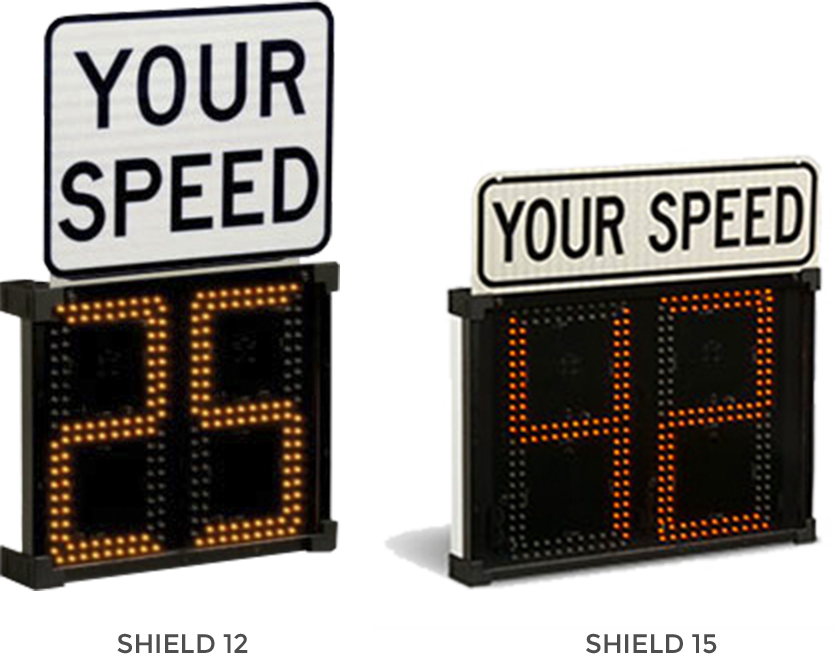

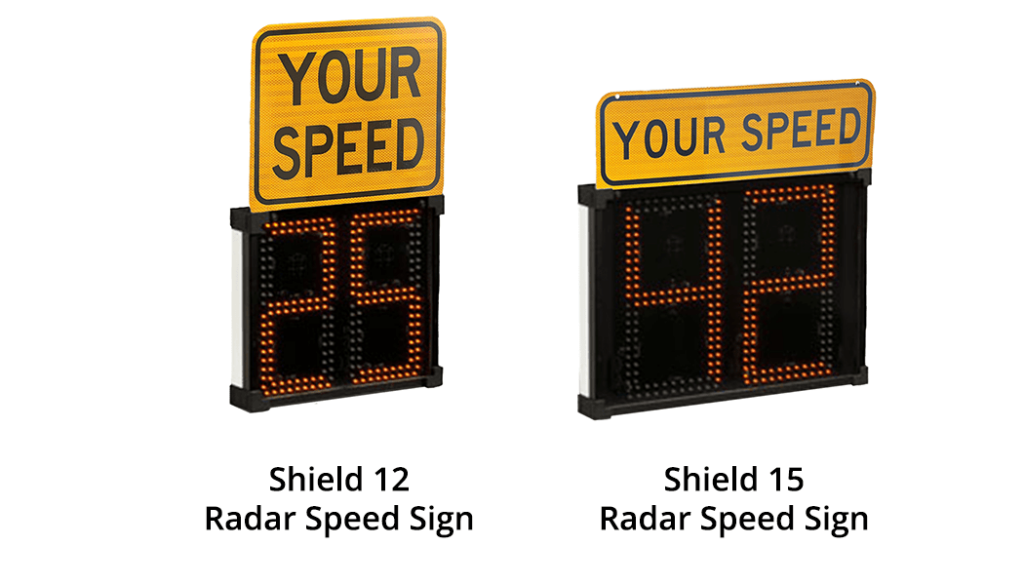

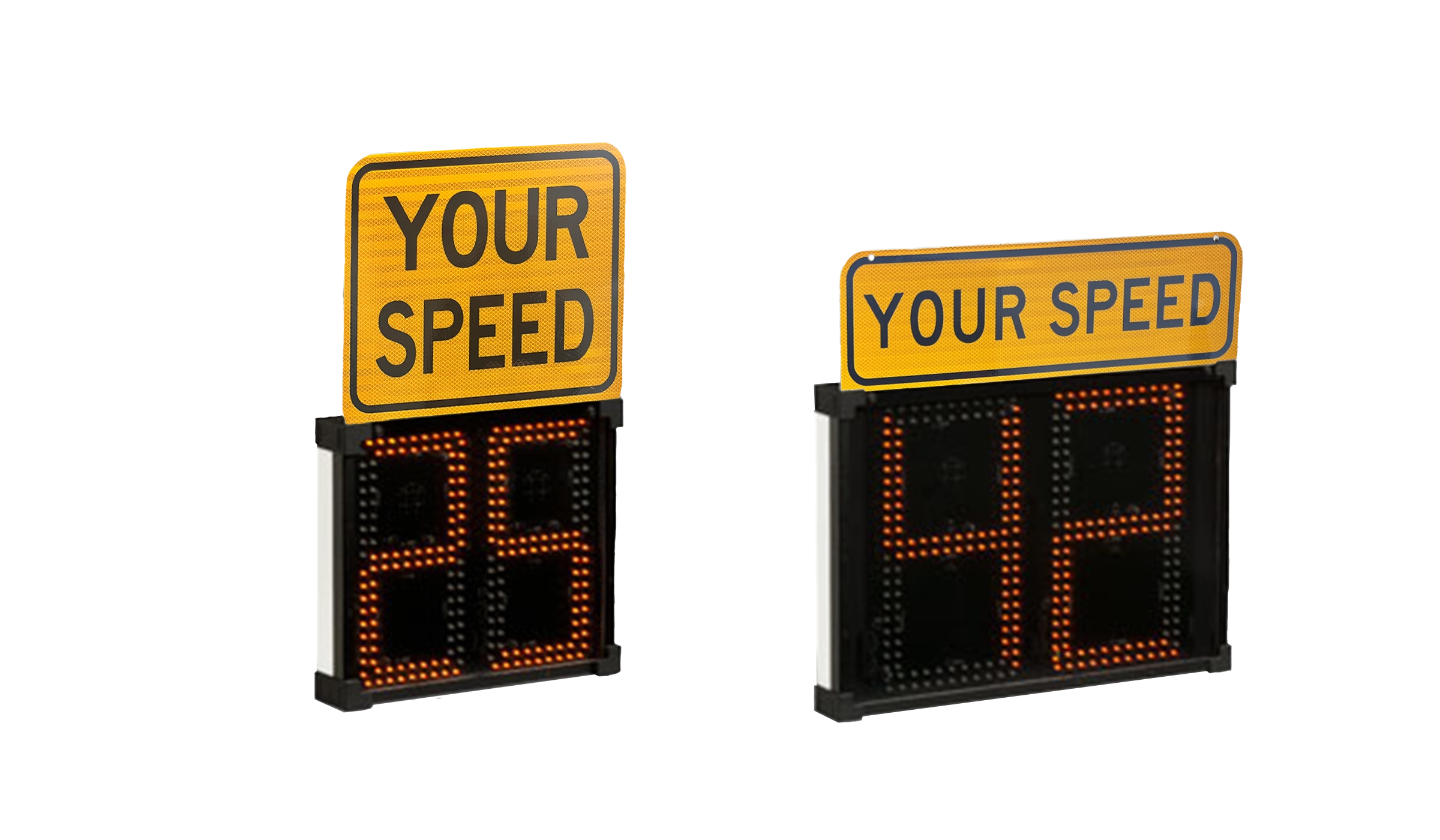

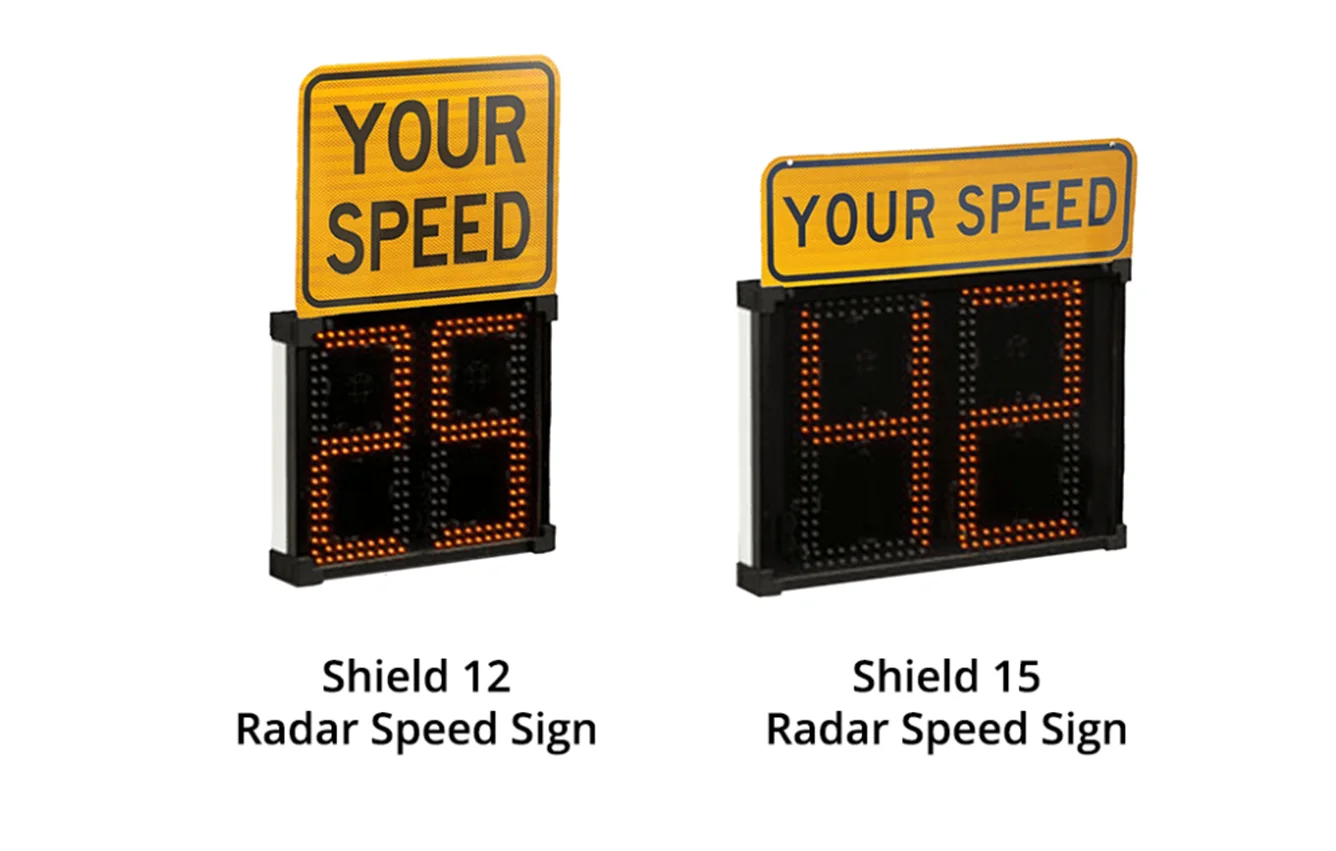

Shield 12 and Shield 15 radar speed signs lead the industry in quality and durability:

  • Lightweight and Portable: The Shield weighs just 12 or 18 lbs including mount, so you’ll use your sign more often, in more places and achieve better results.

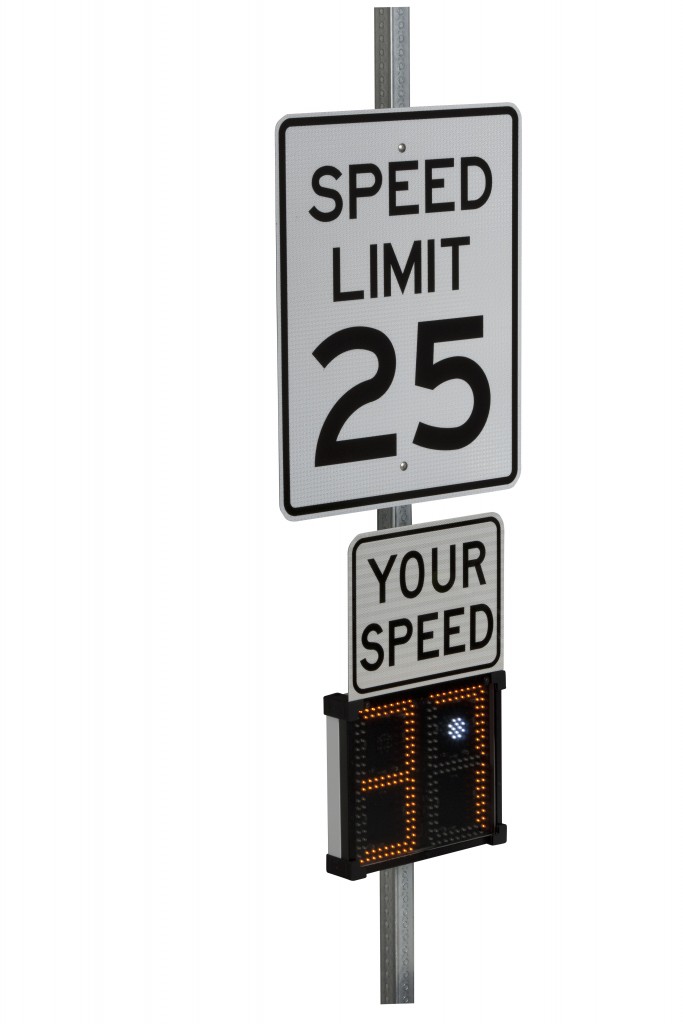

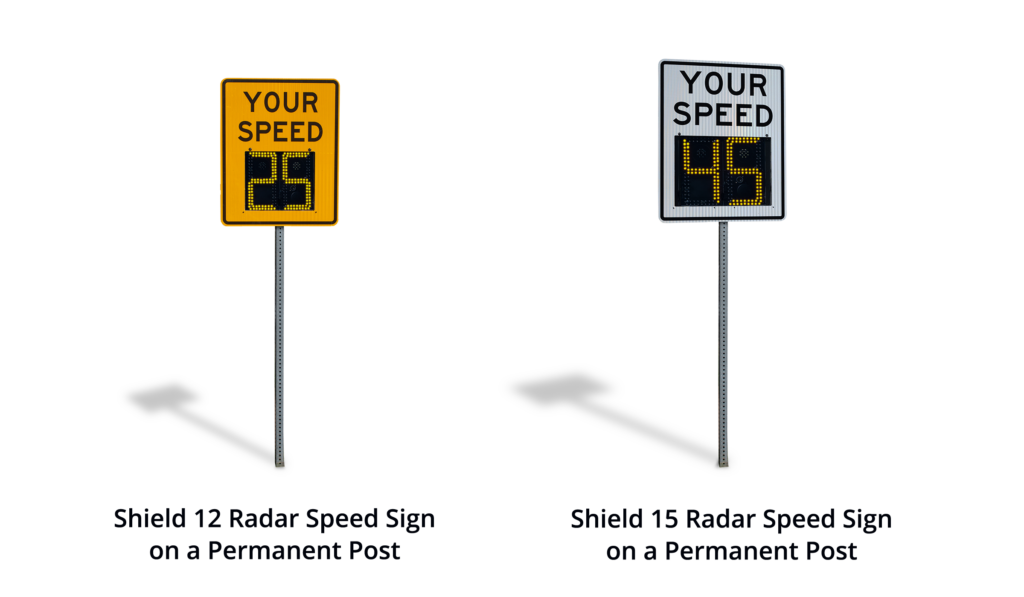

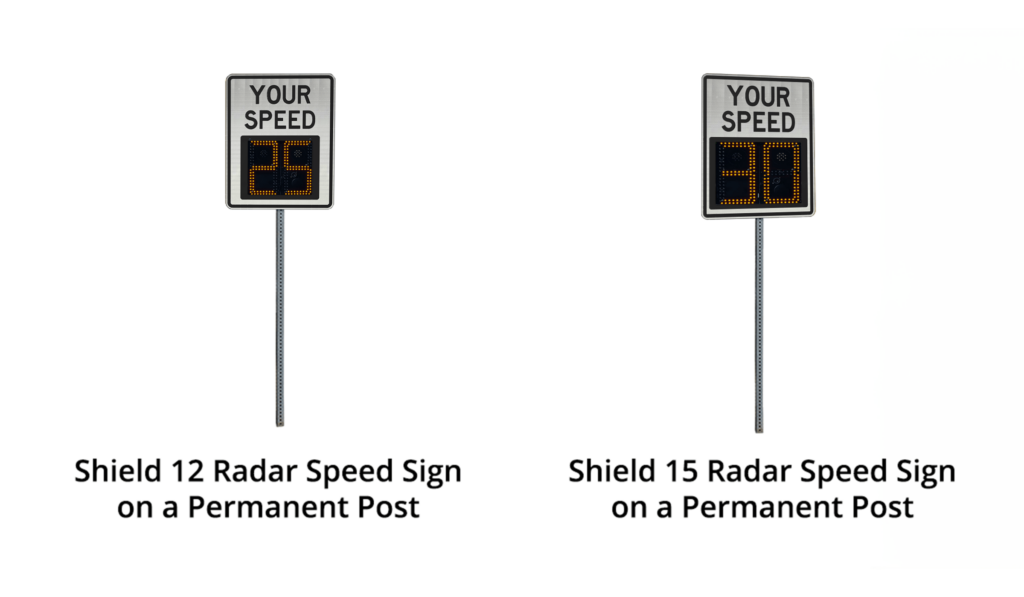

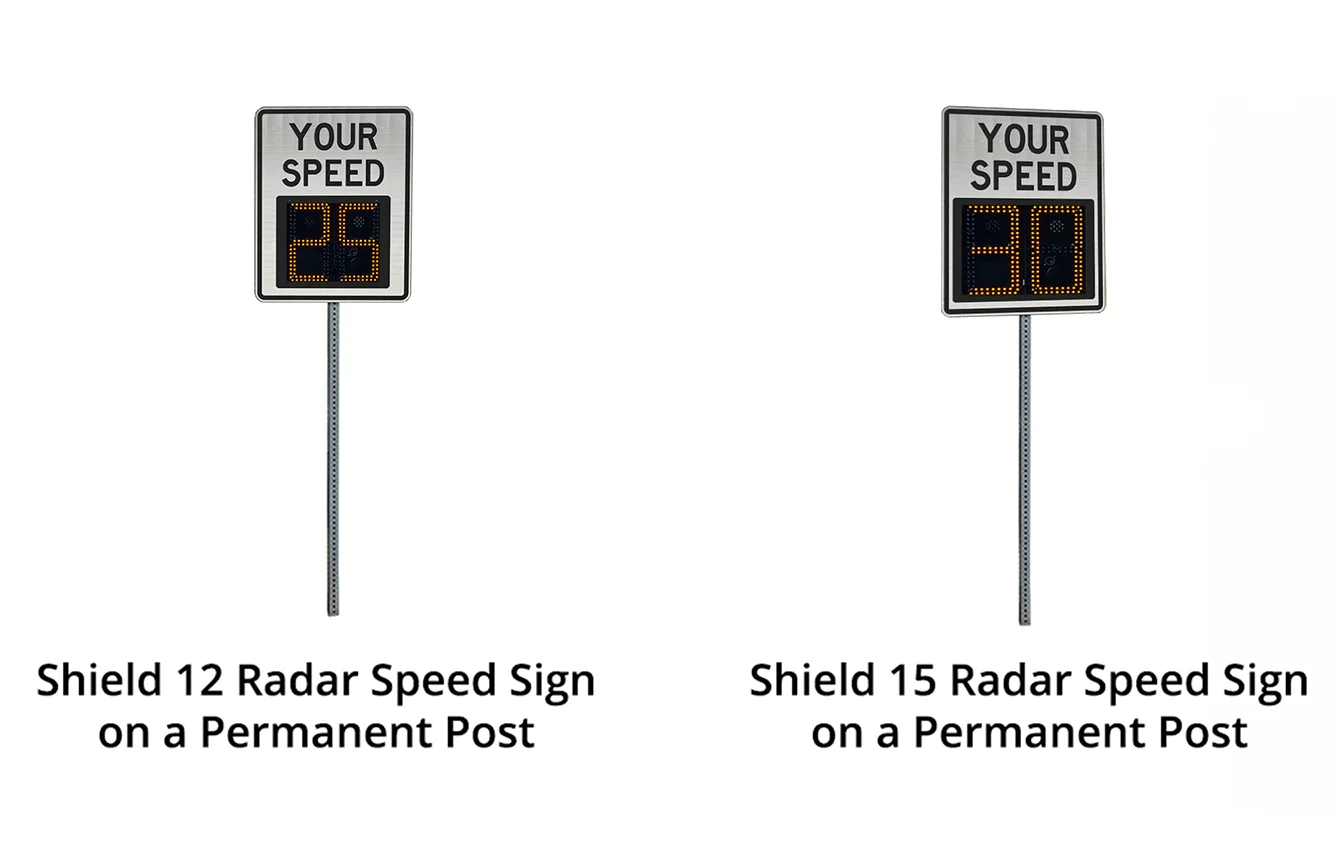

  • Simple, Universal Mounting:  One person can mount and deploy a Shield in minutes on pole, post, trailer or hitch. Permanent or portable mounting, it’s up to you. (See video on this page.)
  • Durable Construction: The Shield is extremely rugged and weatherproof, with welded aluminum enclosure, concealed mounting hardware, shatterproof Lexan and graffiti-resistant powder coat.
  • MUTCD Compliant: Meets the MUTCD minimum requirement of 12” digit size.
  • Amazing Battery Life / Flexible Power Options: Achieve up to several weeks of run time on a single charge. The dedicated compartment allows all-weather battery replacement. Accommodates almost any power source including Lithium battery, Integrated Solar, AC or trailer.
  • Remote Accessibility: Access and monitor the Shield radar speed sign from anywhere with an Internet connection using the ATS TraffiCloud web-based Remote Management Service.
  • Eliminate Data File Management: Upload data automatically, generate and share ready-made reports from computer or tablet. Easy-to-use interface with dashboard convenience.*requires TraffiCloud subscription
  • Receive Alerts: Get email or text alerts for tampering, low batteries and high-speed violators. *requires TraffiCloud subscription

Request More Information:


Watch How Quickly the Shield Deploys

Want a radar speed sign that also displays variable and speed-dependent messages?

Check out SpeedAlert Radar message signs with variable messaging and remote management!

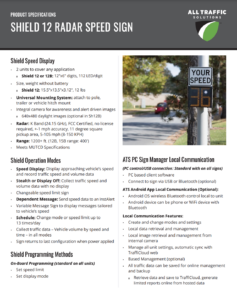

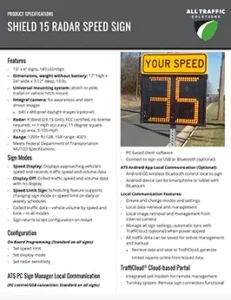

View and Download Spec Sheets

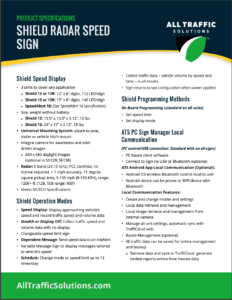

Shield Radar Speed Sign

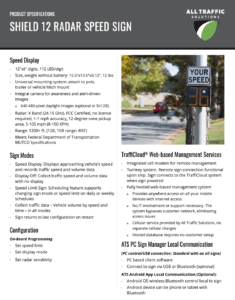

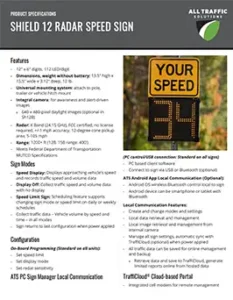

Shield 12

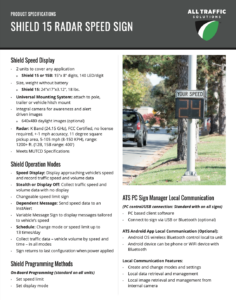

Shield 15

With the radar speed signs, we have had success in educating folks on the actual speeds they are choosing to drive as they enter communities, and this information helps them change their driving behavior.

– Ryan Oakley, District Engineer West Kootenay District British Columbia Ministry of Transportation and Infrastructure

Shield Radar Speed Sign

Control Interface

 TraffiCloudTraffiCloudMore Info
Close

TraffiCloud Features

  • Control equipment from any internet connected computer
  • Multiple users can be set up with permissions to control signs or just to access reports
  • Cloud based and Turnkey – No IT. Unit works out of the box.
  • TraffiCloud Traffic Suite subscription includes Premier Care – A perpetual warranty
  • Contact ATS for information on this subscription service
  • more info on TraffiCloud
 ATS MobileATS Mobile More Info
Close

ATS Mobile Features

  • Your Android device or ours
  • Many sizes available
  • Automatic upgrades
  • TraffiCloud Traffic Suite subscription includes Premier Care – A perpetual warranty
  • Traffic Data synced to server for free
 PCPC More Info
Close

PC Interface Features

  • Web based – you always have the most current version
  • Limited version of TraffiCloud (upgrade to TraffiCloud service anytime and collected data is available)
  • Use online or offline
  • Bluetooth or USB connection to the sign
 On-BoardOn-Board More Info
Close

On-Board Controls

  • Critical settings right on the unit
  • No extra device required in field
  • Intuitive control – easy to use
  • Tamper proof

 Power

 LithiumLithium More Info
Close

Lithium Batteries

  • Compact with high energy density
  • Lithium Iron Phosphate technology – safe and up to 1000 recharge cycles
  • 10Ah and 16Ah versions available, units fit up to 2 (Shield 12 accepts 10Ah only)
  • One connector fits Shield and charger
  • 3A automatic charger, 100-240VAC input
 SolarSolar More Info
Close

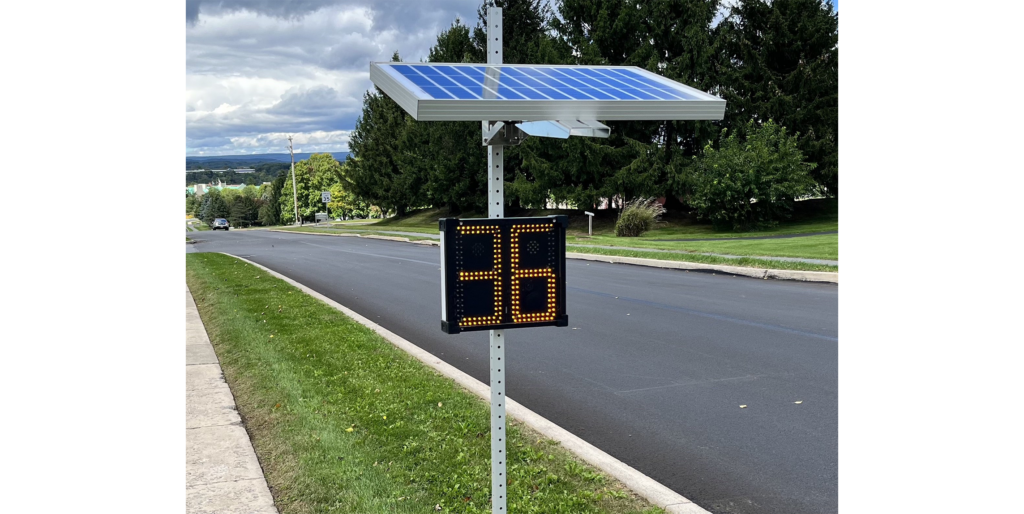

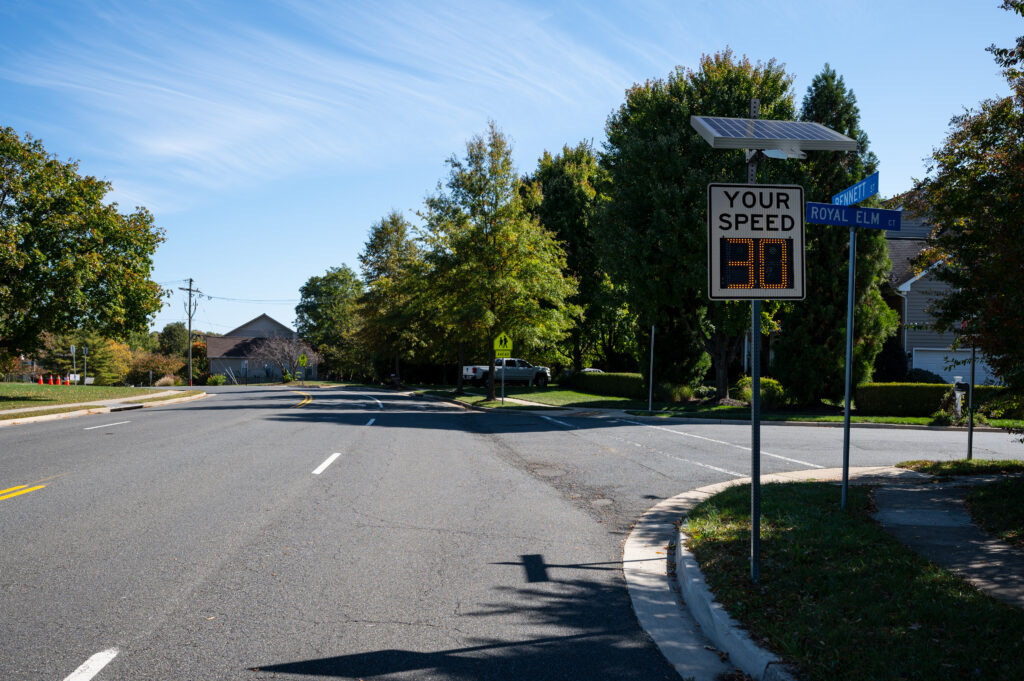

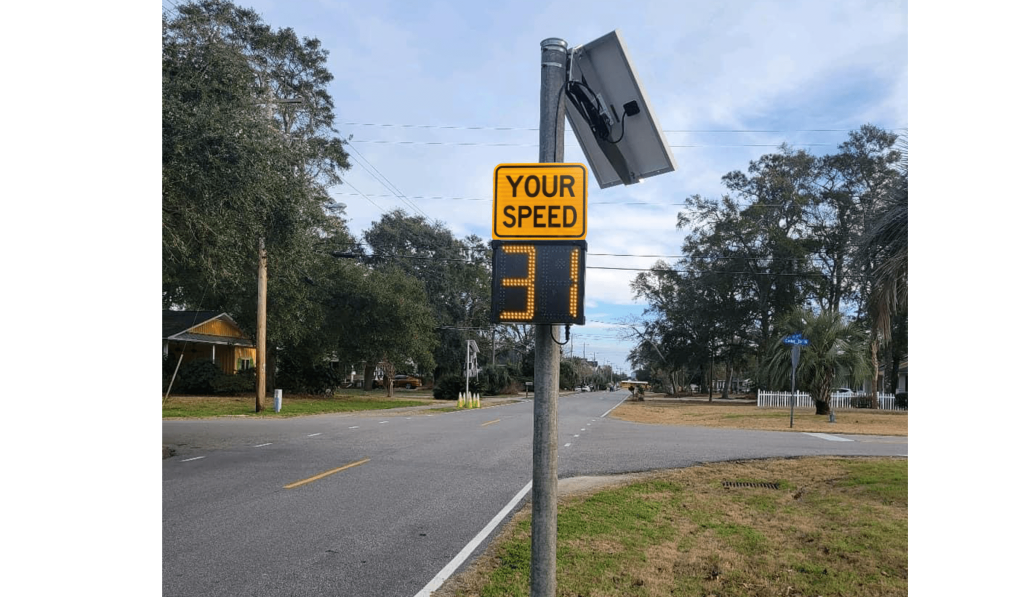

Solar Panel

  • 40 or 60W Panels – Let ATS size your panel
  • Solar controller to prevent overcharging battery
  • Adjustable mounting bracket and wiring included, armored wire casing available
  • Uses sealed lead acid batteries (Solar charging Lithium batteries not recommended.)
  • Shield easily removeable from solar enclosure to move to another location
  • Contact ATS for system sizing and installation tips
 ACAC More Info
Close

AC Power

  • 120 or 220VAC input; 6A 12VDC output
  • Waterproof enclosure
  • Shield easily removeable from AC supply to move to another location
  • Surge supressor installed
 TrailerTrailer More Info
Close

Trailer Power

  • Three battery capacity options – 100Ah, 235Ah or 470Ah
  • Sealed (100Ah) or Flooded Deep Cycle Batteries
  • Solar Option – 40W, 60W, 80W or 120W panel
  • Vented, locked cabinet, armored wire casing available
  • Built in potted 10A charger with AC input external to battery box

 Mounts

 Pole Bracket(Includes 1)Pole Bracket More Info
Close

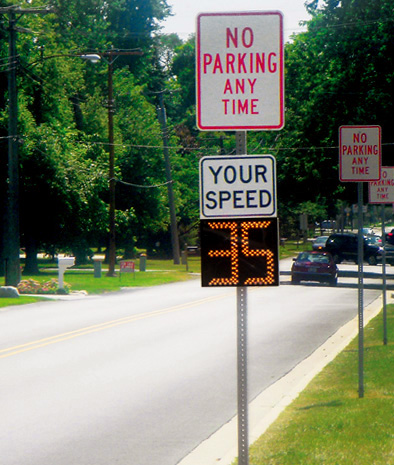

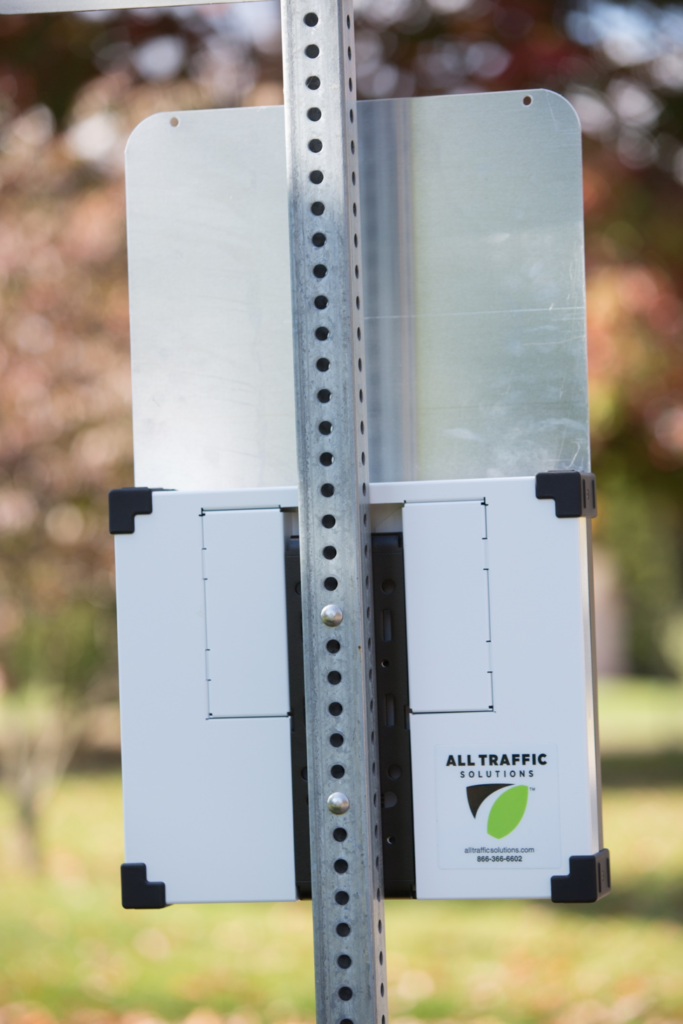

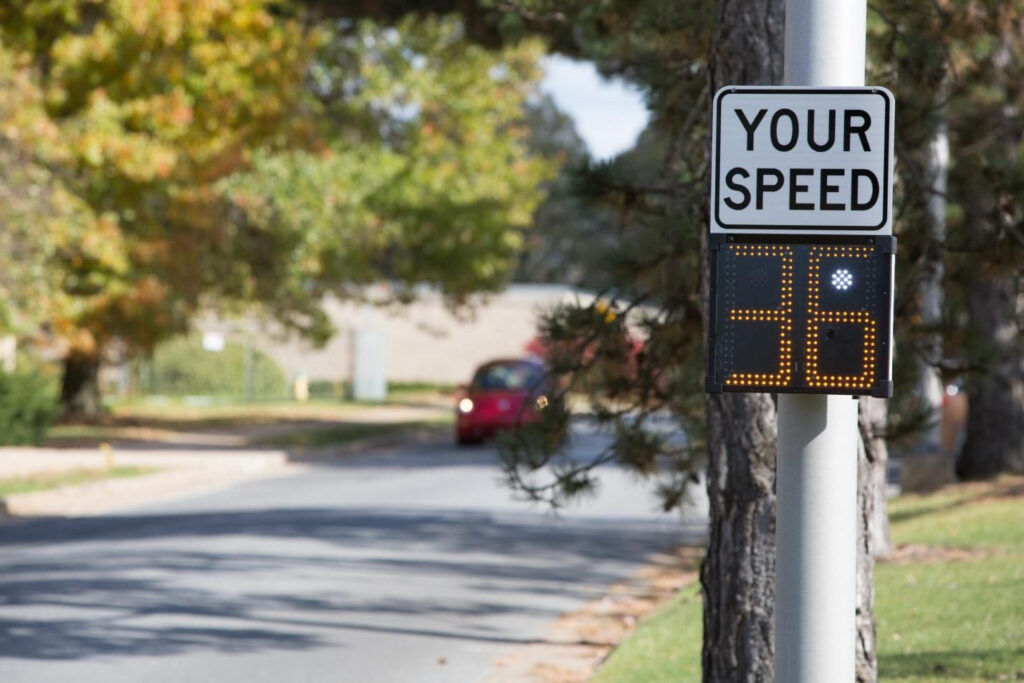

Shield Pole Bracket

  • One included with each Shield
  • Mount with carriage bolts, banding, lag bolts or U-bolts
  • Tamper resistant – Bracket prevents access to hardware, controls and batteries
  • Easy mounting with push lock on Shield
  • Purchase extra brackets and put one in each location to make moves even easier
 TrailerTrailer More Info
Close

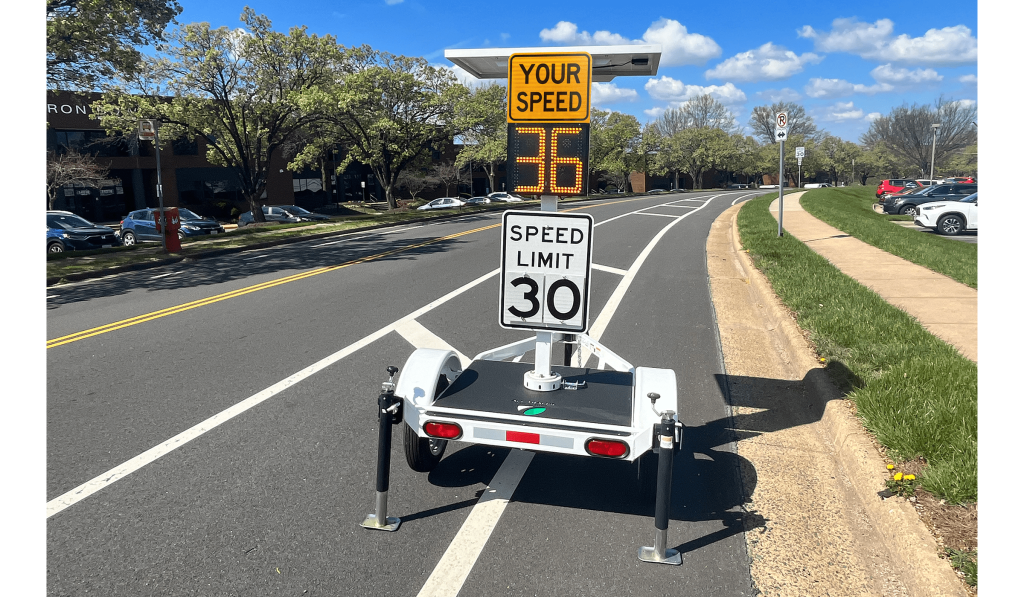

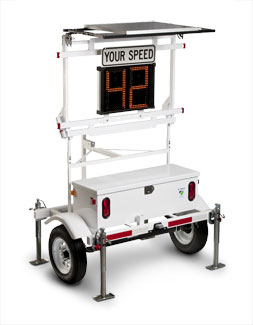

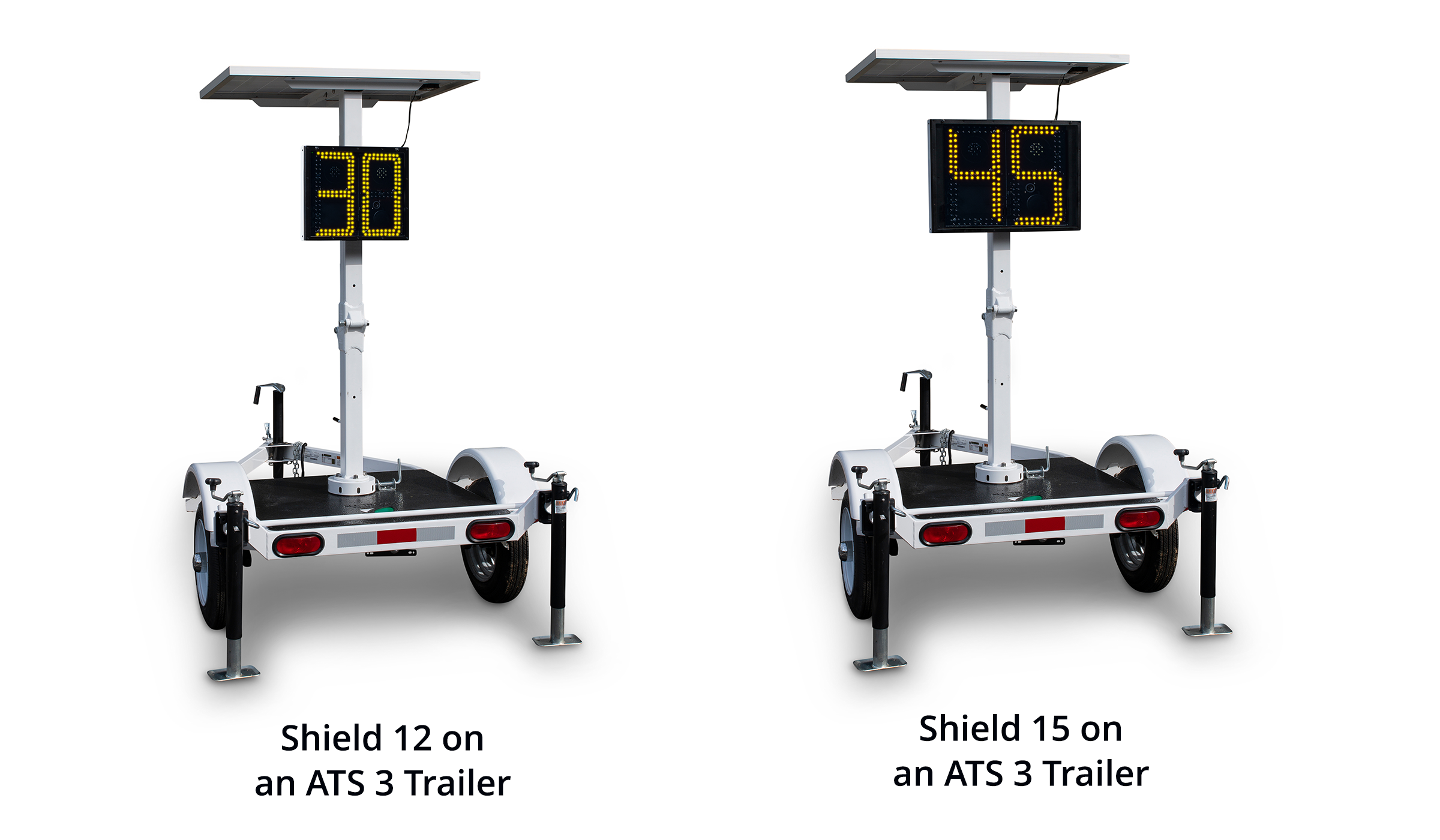

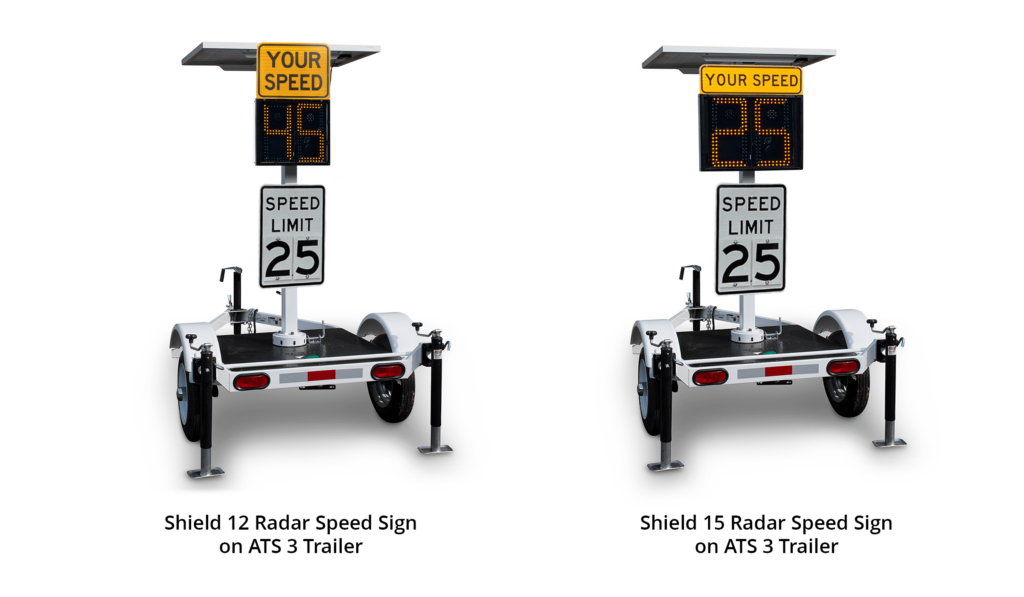

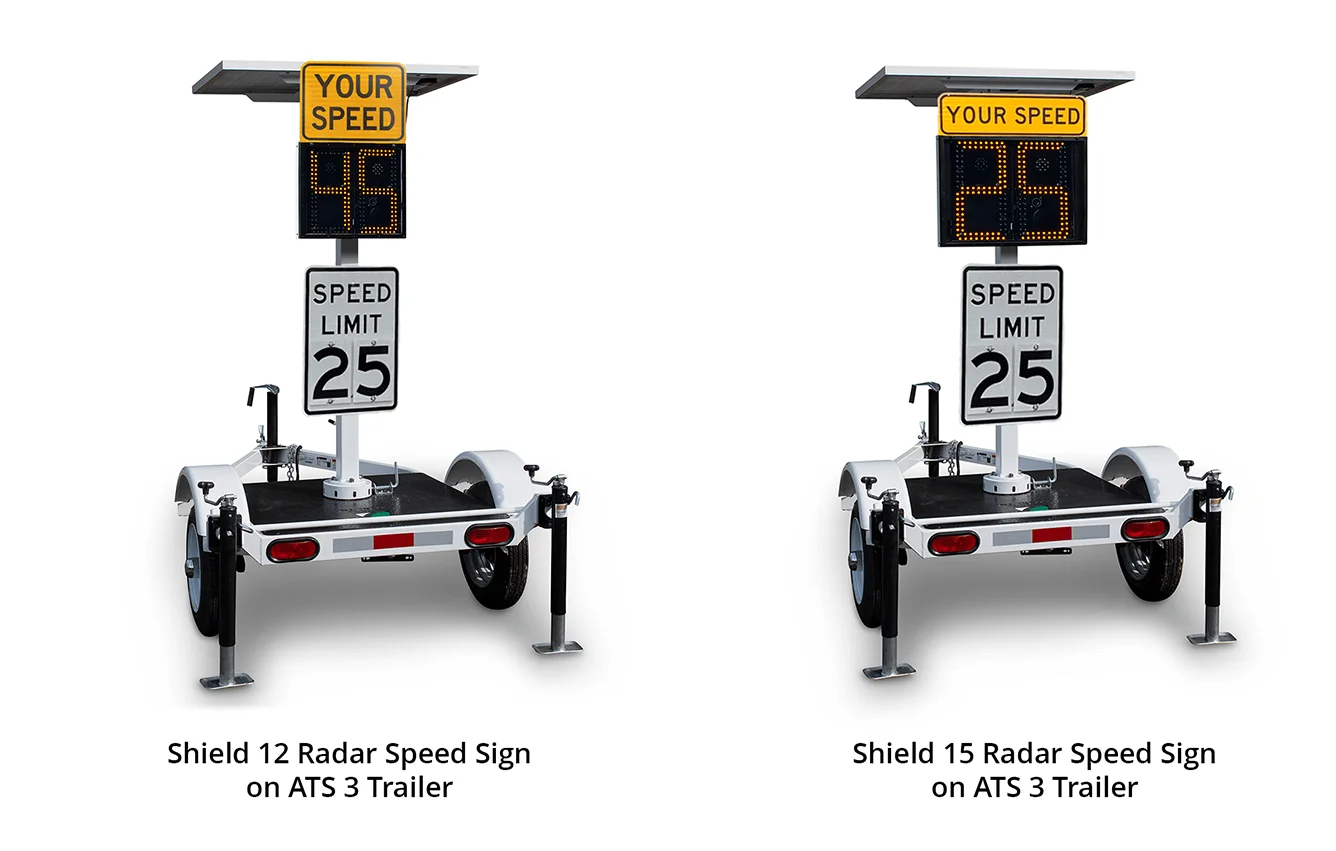

Trailer with Shield 12

  • 12 VDC system, Std 4 pin wiring plug
  • 90W solar assist with 10 Amp solar controller to prevent overcharging
  • Theft-proofing lockable tongue coupler and wheel locking rod
  • Compatible with: Shield 12 (Sh12) radar speed display, Shield 15 (Sh15) radar speed display, SpeedAlert 18 (SA18) radar message sign, InstAlert 18 ( IA18) variable message sign
 Portable PolePortable Pole More Info
Close

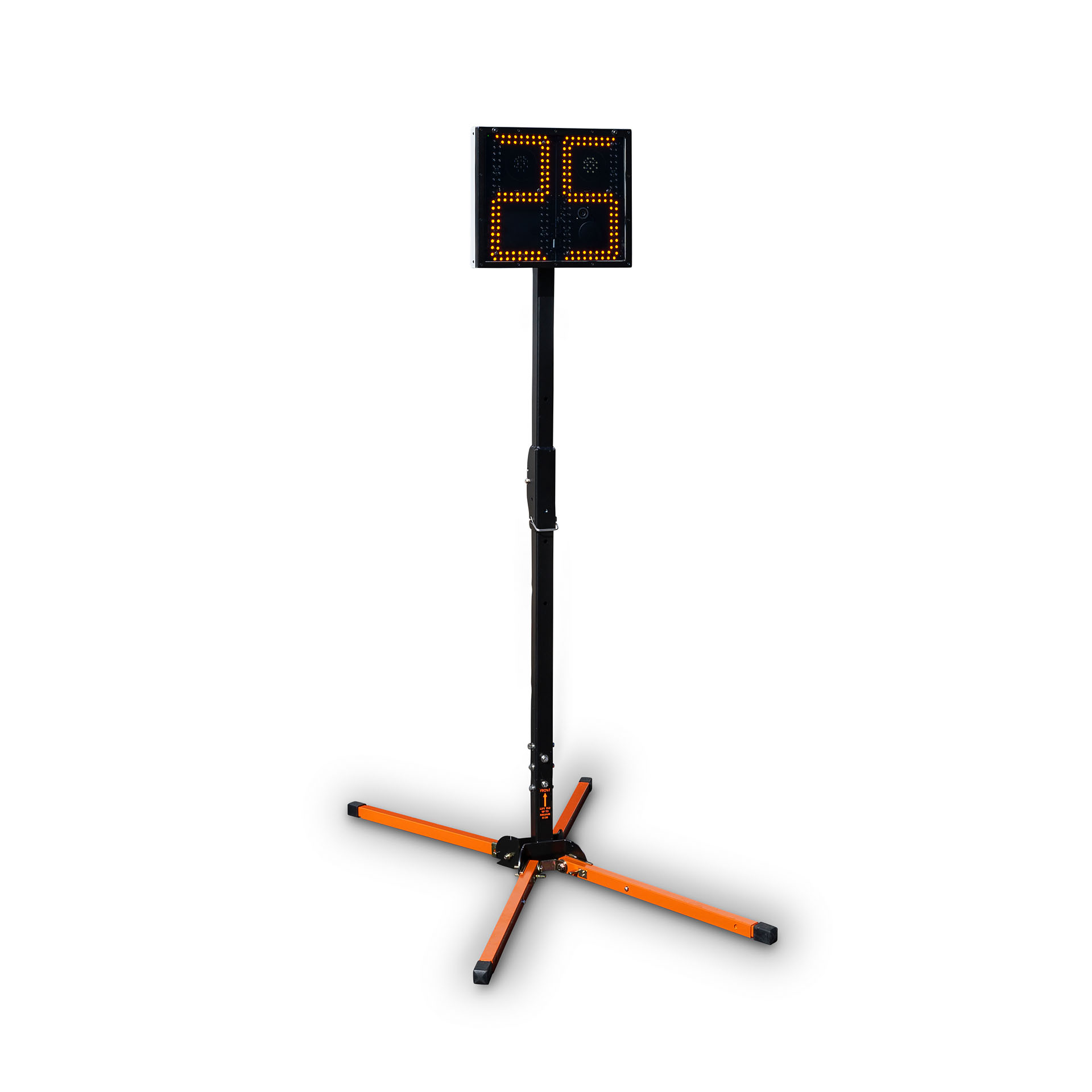

Portable Post

  • Easy to fold
  • Lightweight
  • Stable
  • Uses standard mounting bracket
 Hitch MountHitch Mount More Info
Close

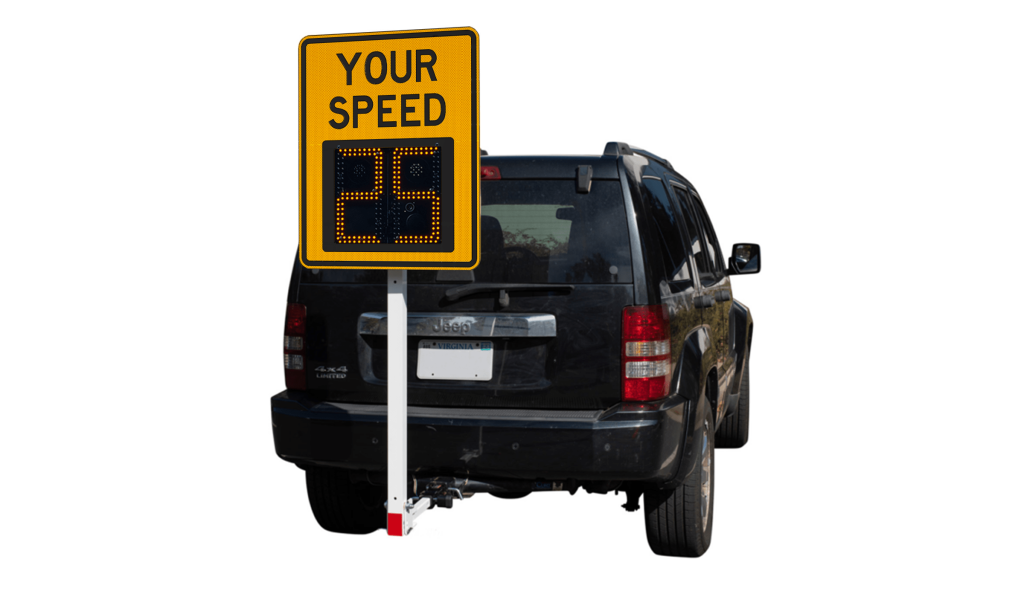

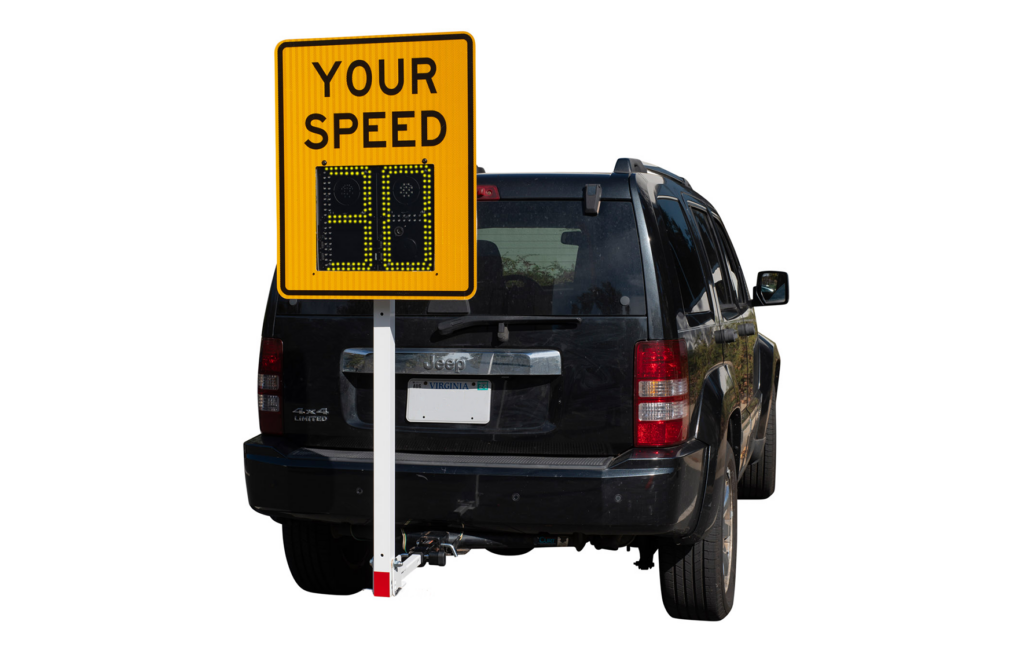

Hitch Mount

  • Fits 1 1/4″ or 2″ Receiver
  • Unit runs on internal batteries or vehicle
  • Secure – can be locked to vehicle
  • Mounts using standard pole bracket
  • Telescoping version available

 Accessories

 Padded Carry CaseShield Carrying Case More Info
Close

Shield Padded Carrying Case

  • Padded case protects Shield during transport
  • Pockets for accessories
  • Shoulder Strap included

Product Gallery
